STOP! KEY ORDERING INFORMATION BELOW - PLEASE READ THOROUGHLY PRIOR TO REQUESTING A QUOTATION OR ORDERING.

LONG LASTING, LOW-MAINTENANCE, & DESIGNED FOR EASY (DIY) INSTALLATION.

Customizable Sizes & Multiple Finishes.

Medium Duty Roll Up Doors are perfect for:

Boat / RV Storage
Agricultural

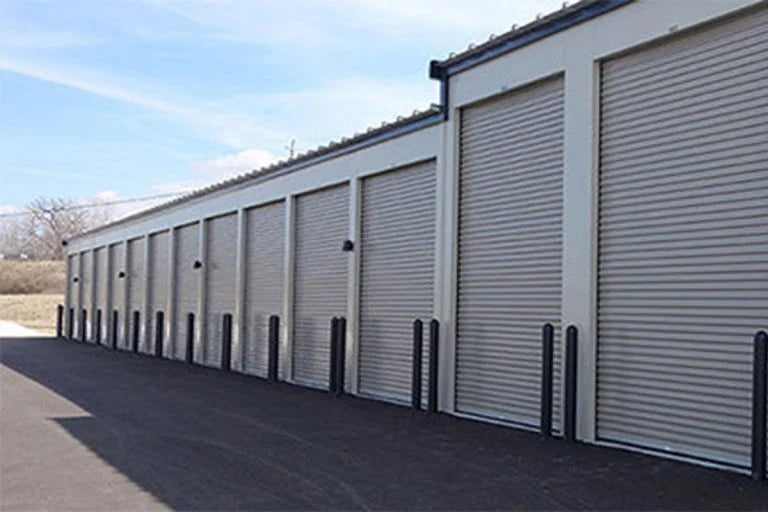

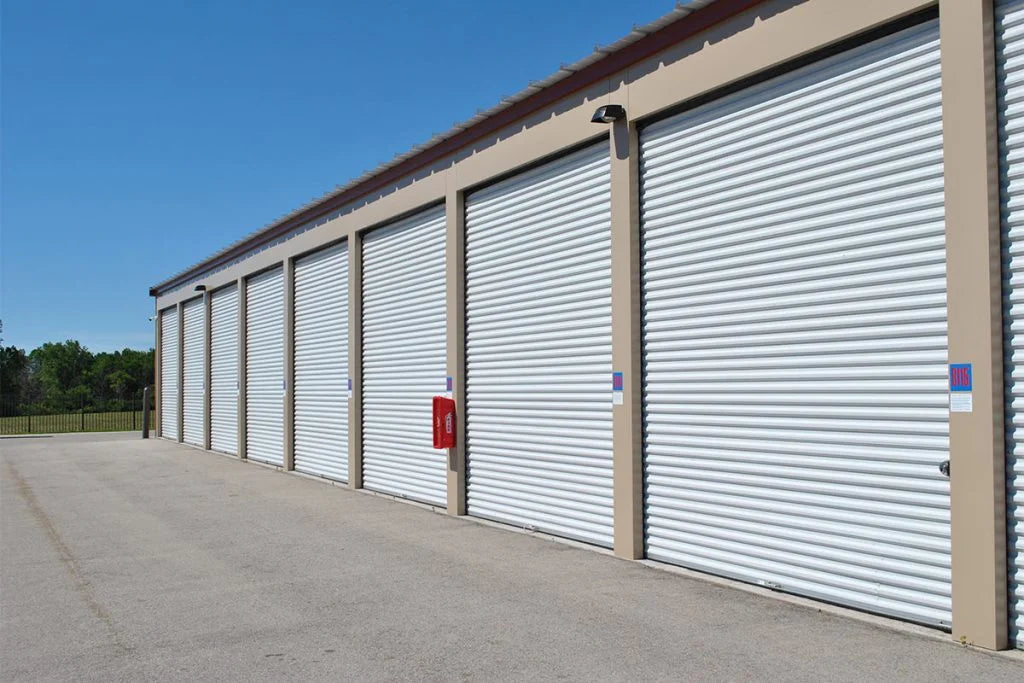

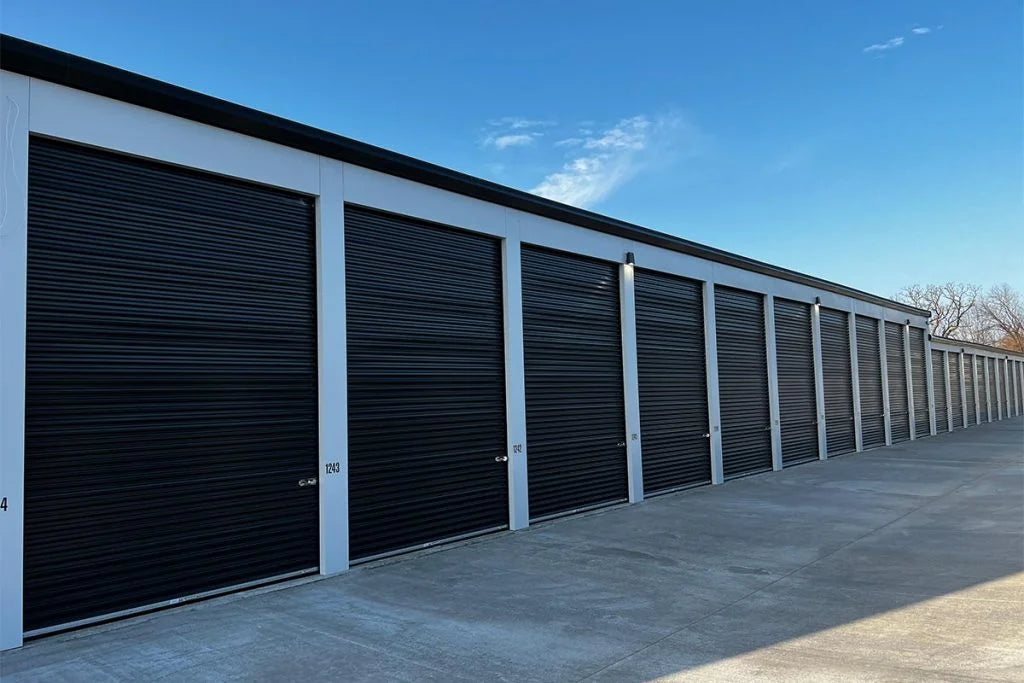

Self Storage
Light Industrial

Our Medium Duty Roll Up Doors Feature:

Customizable Dimensions

Available in widths of 8’0” to 14’0” and heights of 8’0” to 16’0” (customizable in 1” increments), each door has the flexibility to fit where it’s needed.

Full Specifications

For full specifications (Medium Duty Roll Up Door Spec Sheet).

Our roll up doors are made-to-order, so it’s especially important that you double-check all measurements before ordering (as all sales are final).

PRE-ORDER REQUIREMENTS:

Mounting Surface & Door Clearance (3 Steps)

Measure the following areas to design your medium duty roll up door.

Step 1: Measure Framed Opening

Measure the framed opening that the door will cover.
Measure the inside jamb-to-jamb width of the opening (A), and measure the sill to header height of the opening (B). Record and provide the size in 1" increments with the width first and the height second.

IMPORTANT NOTE: If your framed opening is 9'6" wide and 14'0" high, you would order a 9'6" x 14'0" (width first, height second) door. Within your quotation request, you will be asked to provide us with the exact door measurements you desire (to the nearest inch). Remember they need to be identical to the doors framed opening measurements.

Step 2: Mounting Surface Areas

The door will mount inside and above the rough opening, and will overlap the back sides of the opening. It will not fit within the rough opening. The surfaces that the door brackets and side guides mount to must be flush with each other.

Minimum Mounting Surface Areas for Medium Duty Model Roll Up Doors.

Brackets: C = 4 1/2" in Width (w/o Chain Hoist) / 7 1/2" in Width (w/ 8:1 Chain Hoist)
Brackets: D = 13" in Height
Guides: E = 3" in Width (5" masonry)

Step 3: Minimum Door Coil (Headroom & Backroom Requirements)

The door coils into a roll above opening when in the raised, open position. Measure to ensure there is adequate clearance for the coil per the following information.

Minimum Clearance Requirements for Medium Duty Model Roll Up Doors.

Back Room (F) = 20"
Head Room (G) = 22"
Side Room (H) - w/o Chain Hoist = 4 1/2"
Side Room (H) - w/ 8:1 Chain Hoist = 7" (axle must be field cut)
Note: Insulated doors require additional 1" of back room and head room.

** Do not hesitate to ask for clarification regarding any measurement requirements prior to ordering **

Accessories (available)

When Will My Roll Up Door(s) Arrive?

As custom, made-to-measure products, your door(s) will be manufactured and ship as soon as possible. Typical arrival is approximately 4-6 weeks after you place your order.

Let Us Help You

Wondering if these doors are the right option for your project? Need some extra information about dimensions or compatibility?

Whatever you need, you can count on our rolling door experts to have your back. For more information/assistance, all you have to do is ask, so don’t be shy - send your questions to info@RollUpDoorOutlet.com.
